Technical orientation

Mars settlement engineering

The engineering overview therefore focuses on interactions that can overturn a seemingly sound subsystem choice: shared power, thermal rejection, storage, maintenance access, common-cause failures and the recovery time after a fault. Those interactions are where an integrated settlement model earns its value.

Architecture, interfaces and failure modes
Every acronym is defined
No claim of exhaustiveness or institutional endorsement

Start with the reference architecture Read the public introduction

1. Begin with a declared reference architecture

Technical discussions become incoherent when one paragraph assumes a four-person expedition, another assumes a hundred settlers and a third assumes a mature city. A useful study therefore defines a notional reference architecture. “Notional” means a scenario used for analysis, not an approved mission plan.

Parameter	Why it matters	How it should be labelled
Crew size and surface duration	Sets food, water, habitat, medical and rescue demand.	Scenario assumption
Pre-deployed cargo	Determines how much infrastructure exists before the crew leaves Earth.	Architecture choice
Power level	Limits life support, resource processing and industrial activity.	Calculated requirement plus margin
Local water availability	Controls site choice and the feasibility of propellant production.	Measured regional evidence, then site-specific verification
Resupply interval	Sets reserves, spare parts and failure tolerance.	Trajectory and programme assumption

The page uses five evidence labels: measured fact, demonstrated technology, active engineering, derived estimate and author’s scenario. Keeping these labels separate prevents a small demonstration from being mistaken for an operational colony system.

2. Transport architecture and mission mass

The first calculation is not passenger capacity but total delivered mass. Mission mass includes habitats, consumables, power systems, surface vehicles, communications, spares, scientific equipment, resource-processing plants and the propellant required for manoeuvres or ascent. Every kilogram added to radiation shielding or reserves affects launch and propulsion requirements.

A useful high-level relationship is:

Delivered settlement capability = launched mass × transfer efficiency × landing efficiency × operational availability.

This is not a precise engineering equation; it is a reminder that a large launch vehicle does not automatically deliver the same useful mass to the Martian surface. Transfer stages, thermal protection, landing propellant and structural systems consume part of the initial mass.

3. Propulsion and travel-time options

Approach	Strength	Principal limitation	Likely role
Chemical propulsion	High thrust and extensive operational heritage.	High propellant mass for faster or heavier missions.	Crew transport, departure, capture or landing depending on architecture.
Solar electric propulsion	Very efficient use of propellant.	Low thrust and decreasing solar power farther from the Sun.	Slow cargo transport and pre-positioning.
Nuclear electric propulsion	High electrical power with efficient propulsion.	Large reactor, radiator and power-conversion systems; low thrust.	Potential cargo or specialised transport architecture.
Nuclear thermal propulsion	Potentially higher performance than conventional chemical engines while retaining substantial thrust.	Reactor development, testing, safety, materials and political acceptance.	Potential faster crewed transfer.
Mars cycler concepts	Large habitat repeatedly follows an Earth–Mars trajectory.	Complex rendezvous, timing and transport to and from the cycler.	Long-term transport network rather than first missions.

Travel time cannot be reduced in isolation. A faster trajectory changes departure energy, arrival velocity, thermal loads, capture requirements, crew radiation exposure and payload mass. Architecture selection must compare the complete chain that delivers the required crew and cargo, including risk, margins, cadence and repeatability; peak engine performance alone cannot decide the system.

4. Entry, descent and landing for heavy payloads

EDL means Entry, Descent and Landing. Mars presents an awkward combination: atmospheric entry creates severe heating, but the thin atmosphere provides limited aerodynamic braking. Human settlement requires repeated delivery of heavy payloads with high precision.

Candidate elements include rigid or deployable heat shields, inflatable aerodynamic decelerators, parachutes for selected mass classes, terrain-relative navigation and supersonic retropropulsion. Supersonic retropropulsion means firing engines while the vehicle is still moving faster than the speed of sound through the atmosphere.

Settlement-scale EDL must also address plume–surface interaction, ejecta, dust contamination, landing-pad construction, safe separation from habitats and transport of cargo from the landing zone. A vehicle that lands safely but immobilises its cargo tens of kilometres away has not completed the logistical mission.

What living on Mars would actually require — Living on Mars requires a protected settlement system, not an exposed surface camp. This conceptual view accompanies the essential answer while keeping illustration separate from demonstrated maturity.

Multi-level underground Martian habitat linking housing, services and communal spaces. — Conceptual visualization of a settlement becoming urban infrastructure: pressurized compartments, circulation, technical services and communal spaces illustrate the transition from mission base to durable settlement.

5. Mars ascent and return capability

The MAV, or Mars Ascent Vehicle, carries crew or samples from the surface toward orbit. Its mass depends on whether it reaches Mars orbit only or begins a direct Earth return. Producing some propellant locally can reduce landed mass, but this moves risk into the resource-processing and storage systems.

A credible architecture requires evidence that the propellant plant, tanks, valves and power supply have operated successfully before the crew becomes dependent on them. Long-duration storage of cryogenic propellants introduces boil-off and thermal-control problems. Methane–oxygen architectures may use the Sabatier reaction, which combines carbon dioxide and hydrogen to form methane and water, but hydrogen supply and water extraction remain important system choices.

6. Surface power and microgrid design

Power demand is normally divided into survival loads, habitat services, resource utilisation and industry. A conceptual balance is:

P_total = P_{life support} + P_habitat + P_ISRU + P_industry + P_reserve.

The symbol P represents power. ISRU means In-Situ Resource Utilization: using local Martian resources instead of importing everything from Earth.

Fission power can offer continuous output through night and dust events. Solar power is modular and can provide distributed or backup generation, but requires area, cleaning, storage and seasonal analysis. The microgrid must support black-start capability, fault isolation, load shedding and physically separated emergency circuits. Black start means restarting a power system without relying on an already operating external grid.

7. Water extraction and processing

Orbital data can identify promising regions, but the final site needs ground truth. Engineers require the mass fraction of water, excavation energy, processing temperature, contaminants and extraction rate. A complete chain may include excavation, crushing or heating, vapour capture, condensation, purification and storage.

The critical quantities are kilograms of water produced per day, kilowatt-hours consumed per kilogram, maintenance hours, filter life and reserve capacity. A process with excellent laboratory efficiency but frequent downtime can be inferior to a less efficient system with higher availability.

8. Oxygen and methane production

MOXIE demonstrated solid-oxide electrolysis of Martian carbon dioxide at small scale. Scaling the concept requires compression, filtration, thermal cycling, oxygen purification, storage and years of operation. If oxygen becomes an ascent propellant, the plant’s reliability becomes mission critical.

Methane production through the Sabatier reaction may use Martian carbon dioxide and hydrogen derived from water. The process also produces water that can be recycled. The overall system includes electrolysis, gas separation, reactors, compressors, heat exchangers and cryogenic storage. The largest risk is not a single chemical equation; it is the operational chain.

9. Environmental Control and Life Support

ECLSS means Environmental Control and Life Support System. It manages atmosphere, water, temperature, humidity, contaminants and waste. A Mars settlement may combine physicochemical systems with biological processes such as plant growth.

Design questions include oxygen generation, carbon-dioxide removal, trace-contaminant control, urine and humidity recovery, microbial monitoring, fire detection and emergency reserves. A higher “closure rate” means more material is recycled, but maximum theoretical closure is not always the safest first architecture. Stored reserves and simple bypass modes can protect the crew when complex recycling equipment is offline.

10. Habitat pressure, radiation, thermal control and fire

The pressure shell retains the internal atmosphere. Radiation shielding is a separate function and may use regolith, water or dedicated materials around the shell. Separating these roles can simplify inspection and repair.

Repeated pressurisation cycles create fatigue. Penetrations for cables, pipes, windows and airlocks require leak control. Thermal design must reject internal and industrial heat while protecting systems from severe external temperature cycles. Fire is particularly dangerous because the settlement cannot evacuate outdoors; modules need isolation, smoke control and protected refuge zones.

11. Dust control and surface operations

Martian dust is fine, abrasive and potentially hazardous. Dust mitigation begins outside the habitat: suitports, vehicle cleaning, landing-pad surfaces, controlled traffic and separation of dirty and clean maintenance zones. Filters and seals require inspection intervals based on measured loading rather than optimistic assumptions.

Surface mobility includes unpressurised utility vehicles, pressurised rovers, cargo haulers, excavators, cranes and rescue capability. Routes should consider slopes, rocks, communication coverage and the ability to recover a disabled vehicle.

12. Reliability, maintenance and spare parts

MTBF means Mean Time Between Failures. MTTR means Mean Time To Repair. Both are useful but insufficient because different components may fail together through a common cause, such as dust contamination, software error or power loss.

FMEA means Failure Modes and Effects Analysis. It asks how each component can fail, what the consequence would be, how the failure is detected and how the system recovers.

System	Example failure	Effect	Detection	Recovery
Water loop	Pump seizure	Loss of circulation	Flow and current sensors	Parallel pump, manual isolation, reserve tank
Atmosphere control	CO₂ sensor drift	Incorrect control response	Validate with an independent sensor	Calibration or replacement
Power converter	Thermal failure	Loss of electrical sector	Temperature and insulation monitoring	Reconfigurable bus and spare converter
Airlock	Seal leakage	Pressure loss and contamination risk	Pressure decay test	Second seal, alternate airlock, replaceable gasket

Spare-parts planning must include low-cost consumables such as seals, filters, lubricants and connectors, not only large replacement machines. Additive manufacturing may produce some mechanical parts, but electronics, sensors and high-performance materials remain a demanding supply problem.

13. Communications, navigation and digital autonomy

Earth–Mars delay varies and prevents real-time remote control. The settlement needs local decision authority, autonomous software and procedures that remain safe when communications are interrupted. Orbital relays, surface networks, time synchronisation and local positioning are part of the infrastructure.

Cybersecurity is a safety discipline because malicious or accidental changes to software can affect power, air, vehicles or medical systems. Critical control networks should be segmented, updateable through verified packages and capable of manual fallback.

14. Human health and partial gravity

Radiation exposure, reduced gravity, isolation, sleep, dust and limited medical resources interact. Countermeasures may include shielding, exercise, pharmacology, monitoring and mission design. The biological effects of lifelong exposure to 0.38 g remain unknown.

A technical page must identify uncertainty rather than hide it. Reproduction, pregnancy and childhood on Mars cannot be treated as solved simply because adult crews might survive shorter missions.

15. Technology Readiness Levels and verification

TRL means Technology Readiness Level. It describes maturity from basic principles through laboratory prototypes to operation in the real environment. A system can contain components at high TRL while the integrated Mars-scale system remains much less mature.

Verification should proceed through component tests, integrated ground analogues, orbital or lunar demonstrations where relevant, robotic Mars precursors and long-duration operation before crew dependence. The most convincing milestone is not a promotional animation; it is measured performance over the required time with realistic maintenance and fault conditions.

Engineering principle: optimise the mission, not the component

The best engine, greenhouse, reactor or habitat in isolation may not produce the safest settlement. Interfaces, logistics, repairability and common-cause failures determine whether the architecture survives. Every major choice should therefore be tested against mass, power, volume, crew time, failure recovery and long-term expansion.

Scope and limits of this overview

This overview introduces public evidence and the principal system choices. It does not reproduce the full sequences, tables, operational reasoning or integrated city model developed in Arcadia — Manual of the First Martian City.

Arcadia

The complete technical and civic master plan developed by David Salvan.

Explore the manual

Public introduction

A non-technical explanation of the same chain of problems.

Read the public guide

Live engineering developments

Official news, mission channels, NASA and ESA reports, and current broadcasts.

Open live missions

Delta-Sierra calculators and data

Each engineering tool keeps its assumptions and arithmetic visible so a reader can test sensitivity, reproduce the order of magnitude and identify where a conclusion depends on a chosen scenario.

Water make-up calculatorTurn a recovery rate into an actual make-up water quantity.Oxygen demand calculatorKeep metabolic load, duration, and storage margin separate.Cargo landings calculatorTurn a mass-to-deliver target into an explicit logistics cadence.Mars solar + battery calculatorEducational sizing with an explicit Mars sol duration of 24.65979 h.Mars habitat gas calculatorUse the ideal-gas equation without confusing total pressure and partial pressure.Earth–Mars Hohmann transfer calculatorUnderstand transfer time and velocity differences in a two-body model.Delta-v calculator — ideal rocket equationSee the logarithmic effect of mass ratio directly.Simplified Earth–Mars link-budget calculatorUnderstand why distance and frequency strongly affect an interplanetary link.Availability and spares calculatorDo not confuse intrinsic availability with real operational availability.

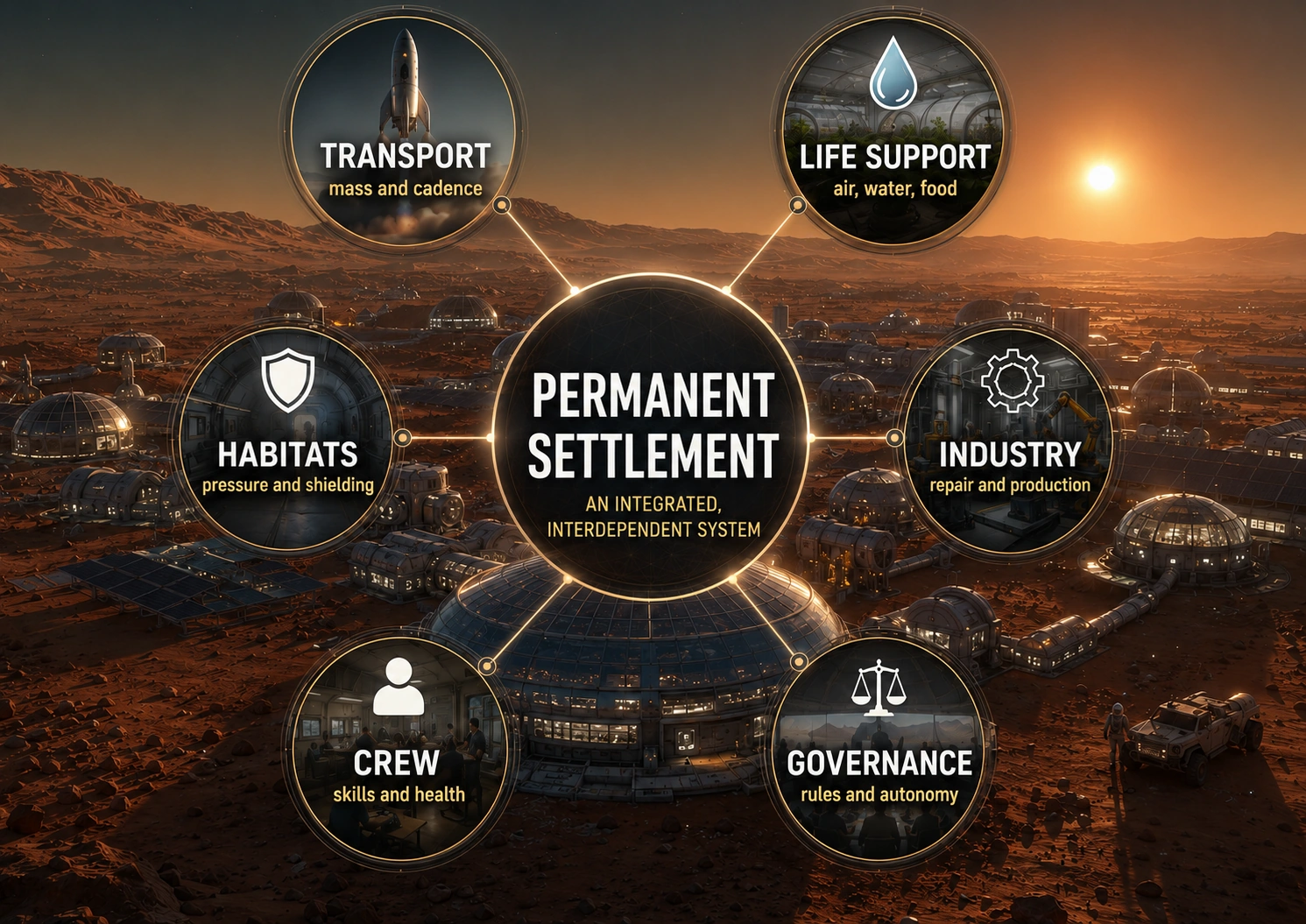

A settlement is not a single object: it is a dependency chain that must become shorter

Calling a future Martian settlement a “base” or a “colony” can hide the engineering problem. A durable settlement is a chain of functions. Some may remain Earth-supplied for decades; others must work locally from the first hour. Breathable atmosphere, pressure control, water, carbon-dioxide removal, fire detection and refuge belong to immediate survival. Power, communications, maintenance, spares and medicine determine how long the crew can absorb a failure. Growth functions come later: resource extraction, agriculture, manufacturing, education, work organization and preservation of technical knowledge. Maturity is therefore better measured by the number of failure dependencies the settlement can absorb than by the number of buildings in a rendering.

NASA's current Moon to Mars Architecture makes this system-of-systems character explicit. Habitation, logistics, mobility, power, ISRU, communications, autonomy and operations are separate sub-architectures because none is useful in isolation. This is not a frozen design for a Martian city. It is a disciplined way to expose interfaces. A habitat without logistics has a finite clock. An ISRU plant without reliable power, process control and maintenance is not yet a resource. A rover without recovery options can turn mobility into an additional hazard.

The first useful question is therefore not “how many people can be launched?” but “which dependencies can be absorbed locally, and for how long?” An early scientific expedition may be deeply Earth-dependent and still be a successful mission. A permanent settlement has a different requirement: it must progressively convert critical dependencies into local capability. Diagnosis and repair come before broad manufacturing; simple manufacturing comes before qualified structural materials; qualified materials come before ambitious claims of industrial independence. Autonomy is a gradient, not a ceremonial threshold.

Dependency ladder of a Martian settlement from immediate survival to partial autonomy — Resilience grows when successive layers remove critical single dependencies: survive, repair, produce, qualify, and preserve knowledge.

Delta-Sierra calculation: why a twenty-landing campaign is a cumulative-reliability problem

Mission discussions often quote the reliability of one landing and stop there. Settlement construction is a campaign problem. Consider a deliberately simple illustration: twenty statistically independent landings, each with a 95% probability of success. The probability that all twenty succeed is 0.95²⁰, about 0.358, or 35.8%. This is not a forecast of any future vehicle. It is an order-of-magnitude lesson about what happens when an architecture requires a long sequence of individually reliable events.

Pedagogical assumption: p = 0.95 per landing; n = 20 landings.

P(all succeed) = pⁿ = 0.95²⁰ ≈ 0.358.

The physical meaning is simple: a campaign that requires every delivery to arrive exactly as planned is brittle even when each individual landing looks highly reliable.

The engineering response is not to demand imaginary perfection. It is to make the campaign tolerant of losses: distribute critical functions, pre-position inventory, duplicate interfaces, and avoid putting the only power unit, the only life-support spare and the only medical stock on the same cargo element. Campaign redundancy consumes payload mass, but it can prevent a local loss from becoming a settlement-ending event. The manifest then becomes a fault-tolerance architecture rather than a shipping list.

Scale changes the problem again. Four people can sometimes bridge a failure with conservative operations and stockpiles. At one hundred people, food, water, oxygen, maintenance and waste streams become continuous industrial flows. At one thousand, continuity of service matters as much as survival of an expedition. Vital functions need modular capacity, isolation boundaries, repair crews, diagnostic tools and a documented configuration that can be understood years after the original hardware left Earth.

If settlement on Mars ever becomes real, its decisive progress may therefore be less spectacular than the first landing. The deeper milestone is the moment when each new generation of hardware makes the next generation less dependent on one precise shipment from Earth while remaining explicit about what is still imported. That distinction separates exploration architecture, durable settlement and genuine long-term societal capability.

Scaling changes the architecture: 4, 20, 100 and 1,000 residents are not the same base multiplied

With four people, most operations can still be organized around the crew. Everyone knows several systems, inventory can be reviewed manually, and a rare failure may mobilize the whole team. At twenty, continuous duty appears: agriculture, life support and communications cannot stop whenever everyone goes outside. At one hundred, specialization becomes necessary and maintenance becomes a permanent function with planning, stores, metrology, documentation and training. At one thousand, a mission architecture becomes urban infrastructure. Power distribution, water networks, workshops, public health, waste handling and fire protection must tolerate local failure without stopping the community.

Scale is also social. Four people can decide around one table. A thousand require resource priorities, skill management, qualification rules and mechanisms for shared infrastructure. An engineering choice can become a collective choice: who receives power during shortage, how much medical capacity remains reserved, and which water margin protects against unexpected population growth? These questions do not prescribe a political system. They simply show where physical architecture meets social organization.

For that reason, every specialist calculation should reveal its scale. A recycler sized for four can be excellent without being an architecture for one thousand. A greenhouse that supplies fresh vegetables may improve health without creating food independence. A printer can eliminate selected failure points without creating a metallurgical industry. Technical maturity is demonstrated as much by explicit limits as by new capability.

Go further in the books

Arcadia — technical companionThe technical architecture behind the first Martian city.

I Walked on Mars — four novelsExperience the settlement and growth of Arcadia from inside.

Author’s Visual Vision — four illustrated booksThe illustrated visual companion collection to the novels.

Autonomy budgets: separate what the settlement consumes, what it loses, and what it still cannot reproduce

Each critical resource can be tracked with three columns as the settlement grows. First is gross throughput: kilograms of water per day, kilowatt-hours, filter cartridges, pharmaceuticals or tooling hours. Second is recovered fraction: recycled water, remelted metal, reused parts and nutrients returned to crops. Third is irreducible external dependency: material that still has to come from Earth because the settlement cannot produce or substitute it. A loop that is 98% closed sounds nearly complete, but the remaining 2% becomes a large absolute flow when population and time grow.

Consider a teaching scenario in which a system processes 2,000 kg of water per day and truly loses 2%. Makeup demand is 40 kg/day, roughly 14.6 tonnes per Earth year. At 99.5% recovery, loss becomes 10 kg/day, roughly 3.65 tonnes/year. A 1.5 percentage-point improvement therefore removes about 11 tonnes of annual makeup in this example. The next question is whether the extra equipment, energy, cleaning and maintenance required to gain those percentage points is worth it. “More closed” is not automatically “more robust.”

Loss = throughput × (1 − recovery fraction).

2,000 kg/day × 0.02 = 40 kg/day; 2,000 × 0.005 = 10 kg/day.

Annual difference: (40 − 10) × 365 ≈ 10,950 kg.

The same table can be applied to skills. A settlement may recycle almost all its water and still be unable to recalibrate the instrument that verifies water quality. Material autonomy therefore has to be paired with diagnostic, decision and training autonomy. Local technical libraries, test benches and education are not peripheral services; they extend the period during which hardware remains understandable and repairable.

The first Martian “neighbourhood” is likely to be an architecture of compartments

Terrestrial cities allow many networks to pass through common buildings; Mars penalizes common causes more severely. Depressurization, fire, contamination or an electrical fault should not simultaneously remove sleeping space, refuge, command and inventory. Modular growth therefore needs boundaries: isolatable pressure volumes, alternate power routes, distributed reserves and local communications that survive the loss of one node.

This logic is different from the image of one giant dome. A large volume can be comfortable and efficient for selected functions, but it also increases the consequence of containment loss. A mature architecture may combine large common spaces with safe cells, much as ships combine living areas with watertight subdivision. As population grows, the question is not merely how many square metres can be added, but whether scale has been prevented from becoming a common vulnerability.

A settlement can be mass-positive yet still be dependency-negative

Local production is often summarized as tonnes of material made on Mars, but mass alone can hide the decisive dependency. A settlement might make thousands of tonnes of shielding, bricks and oxygen while still depending on Earth for a few kilograms of catalyst, electronics, membranes or pharmaceuticals that gate essential systems. A more revealing dashboard separates bulk mass displaced from critical imports displaced. The first matters for transportation economics; the second matters for survival and operational autonomy.

Consider two fictional improvements. Process A replaces 100 tonnes/year of imported aggregate but leaves all critical control hardware Earth-supplied. Process B replaces only 500 kg/year of a specialized consumable that otherwise shuts down water recovery. By mass, A is two hundred times larger. By mission consequence, B may be the more important autonomy milestone. The architecture therefore needs both a mass ledger and a criticality ledger.

Growth should be gated by recovery capacity, not only by nominal production

A population increase raises routine demand, but it also increases the amount of equipment that can fail simultaneously. If a settlement doubles its residents while keeping one workshop, one hospital bay, one airlock repair team and one water-analysis bench, the bottleneck may move away from production and into recovery. Capacity planning must therefore include emergency queues.

A simple utilization warning is useful. If a workshop has 4,000 schedulable hours per year and nominal maintenance already consumes 3,200, utilization is 80%. Adding work that consumes another 600 hours raises planned utilization to 95%, leaving only 200 hours of annual slack. The settlement looks efficient in nominal operation but has very little room for a major failure campaign. On Mars, spare capacity can be a safety system.

Initial utilization: 3,200 / 4,000 = 0.80 = 80%.

After added demand: (3,200 + 600) / 4,000 = 0.95 = 95%.

Residual slack: 4,000 − 3,800 = 200 h/year.

Architecture maturity is partly the ability to explain a degraded mode

For each critical service, a mature design should be able to answer a plain-language question: what happens after the preferred system fails? Oxygen may come from stored reserve while production is repaired. Water quality may move to a lower-throughput backup analytical method. Mobility may be restricted to a safe radius. Food diversity may decline while calories remain protected. Industrial output may stop so power can be reassigned to life support.

This framing is valuable because it prevents redundancy from becoming a list of duplicated boxes. A degraded mode can involve a different technology, a lower service level, a procedural workaround or a temporary stock. What matters is whether the settlement retains a controlled path from failure to safe operation and then to recovery.

The architecture needs a ledger of assumptions as much as a ledger of mass

Many disagreements about Mars are actually disagreements about unstated assumptions. One study assumes six crew members, another four; one assumes high water recovery, another larger makeup stocks; one assumes local oxygen before crew arrival, another delivers all ascent propellant. Comparing only the final mass numbers can make two internally consistent architectures look contradictory.

A reference-quality engineering page should therefore make its assumptions auditable. Population, mission duration, reserve days, equipment availability, recovery fraction, power margin and local-production maturity should be written beside the result. When an assumption changes, the reader can see which conclusion moves with it. This is especially important for scenarios at 4, 20, 100 and 1,000 inhabitants, because some relationships scale almost linearly while staffing, redundancy and industrial capacity do not.

Interfaces are where optimistic subsystem studies collide

A water system may claim low power at one operating point, an ISRU plant may claim high throughput at another, and a thermal system may be sized for a third duty cycle. The settlement only works when those operating points can coexist. Interfaces therefore need explicit quantities: voltage, pressure, temperature, flow, data rate, contamination limits, crew time and allowable outage.

This suggests a powerful review question for every mature chapter: what does this system require from its neighbours, and what does it export back to them? A greenhouse exports humidity and heat as well as food. An electrolysis plant exports oxygen but also heat, off-gas and maintenance demand. A machine shop exports repaired hardware but imports power, clean feedstock, metrology and crew skill. System architecture is the discipline of making those exchanges visible before they become surprises.

Autonomy has a time dimension: the same inventory means something different at 30 days and at 26 months

Inventory should be measured in days of protected service rather than kilograms alone. Five hundred kilograms of a consumable may be abundant for a four-person crew and dangerously small for a growing settlement. The same stock can also change meaning as the next Earth–Mars logistics opportunity approaches or recedes. For each critical item, planners therefore need a burn rate, uncertainty band, reorder opportunity and minimum protected reserve. A useful dashboard is not “we have 500 kg,” but “at current use we have 180 days, the next credible replenishment is 240 days away, and local substitution can cover 40% of demand.”

This time-based view connects logistics to design. A component that cannot be locally made may still be acceptable if it is tiny, stable for years and easy to stock in depth. A locally produced commodity may remain operationally fragile if its plant fails often and reserve covers only a few days. Autonomy is therefore not identical to local production. It is the ability to keep essential functions inside a controlled time horizon when production, transport or people fail.

A Martian settlement is not a habitat to which equipment is gradually attached. It is a system of systems in which agriculture, workshops, medicine, mobility and industry each create new demands for power, cooling, storage, quality control, maintenance and skills. Maturity is the ability to absorb these dependencies without creating hidden common-cause failures.

The final reading should separate three layers: what physics requires, what demonstrations have actually shown, and what settlement architecture still has to invent. That prevents a genuine advance from being inflated into a promise and turns the roadmap into a sequence where uncertainty is retired before population or autonomy is increased.

Engineering closure also requires a campaign view. A habitat that closes its own mass and power budgets can still be a poor settlement element if its deployment, maintenance or replacement depends on an unavailable vehicle or interface. The same system should therefore be checked in the context of precursor cargo, surface transport, power growth and emergency shelter. This exposes dependencies that disappear when every subsystem is reviewed in isolation and makes it possible to decide which capability must exist before crew arrival and which can mature after occupation begins.

NASA architecture status, 2026

NASA still describes the Mars trade space as relatively open in March 2026, with interdependent choices in transportation, arrival, surface operations and ascent. It is therefore evidence of an evolving architecture framework, not a frozen mission design.

Additional primary sources

NASA — Moon to Mars Architecture: Components

NASA — Mars Architecture Trade Space

NASA NTRS — Mars Surface Habitat Concept Design

Technical source gateways

NASA — Moon to Mars Architecture NASA Technical Reports Server NASA — Humans to Mars ESA — Life support and MELiSSA SpaceX — Starship

Additional primary technical sources:

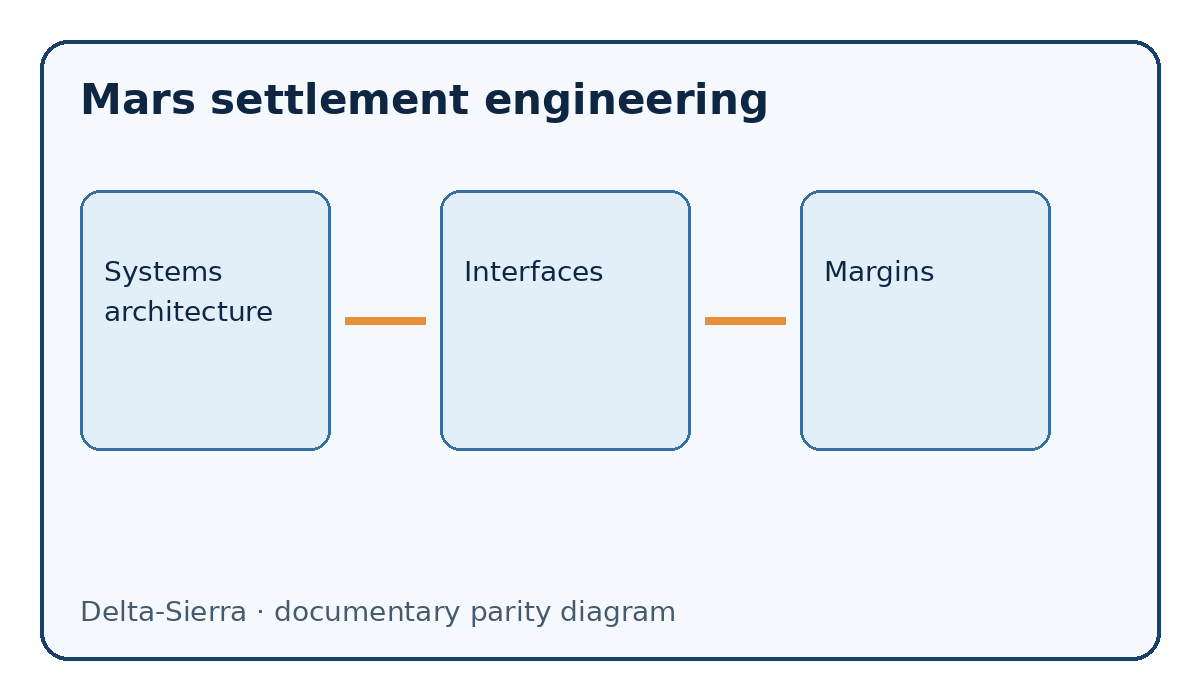

Systems architecture: what has to remain coupled

A settlement is a system of systems because no major function remains isolated for long. Water processing needs electrical power and rejects heat; oxygen production needs feedstock, sensors and storage; food production adds humidity and a variable electrical load; workshops need clean power, ventilation and metrology. The engineering task is therefore to write interfaces as measurable exchanges: kilograms per day, kilowatts, temperatures, pressure ranges, purity limits and recovery time after failure. When those numbers are missing, two individually credible subsystems can still be impossible to operate together. A useful architecture budget reserves capacity at the interfaces rather than assuming every subsystem will reach its best-case operating point simultaneously.

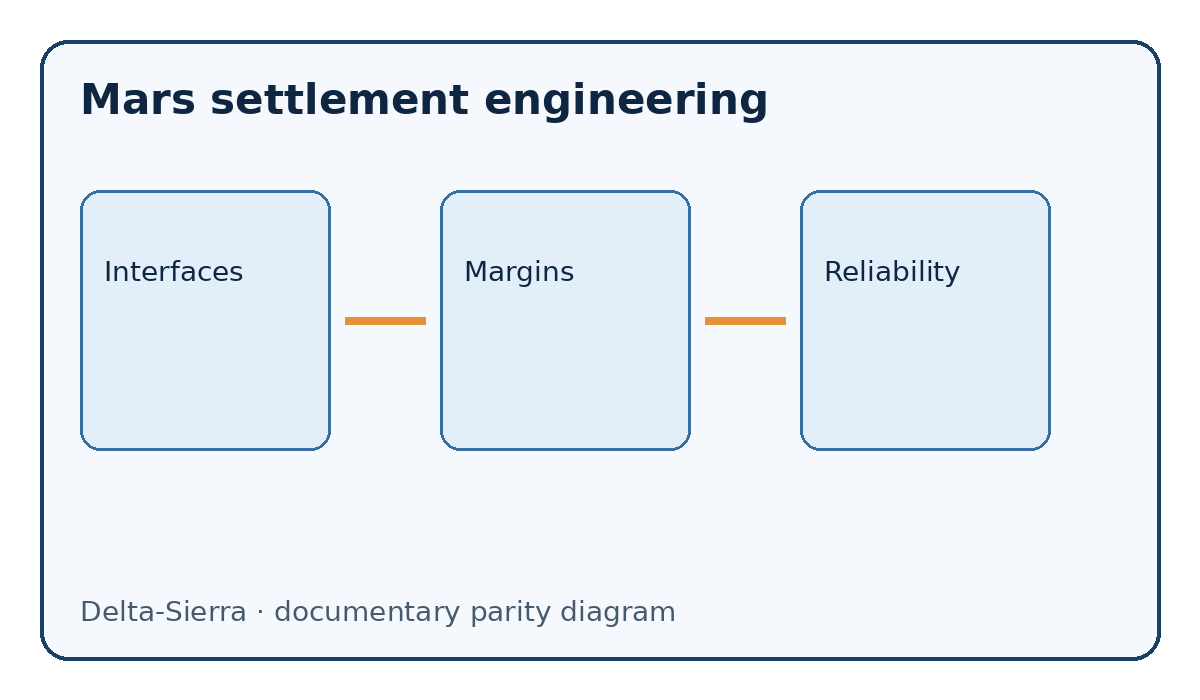

Interfaces: where otherwise sound subsystems fail together

Interfaces deserve their own verification because they combine assumptions from different teams. A pump may satisfy its flow requirement while the upstream tank cannot maintain inlet pressure; a greenhouse may meet food yield while its humidity load exceeds the cabin-control margin; an ISRU plant may produce oxygen that cannot be compressed or stored at the required rate. Interface control therefore needs more than connector drawings. It needs allowable ranges, transient behavior, isolation states, ownership of sensors and a recovery procedure. The best interface is often one that can be disconnected and tested without shutting down the rest of the settlement, because isolation turns a coupled failure into a bounded maintenance event.

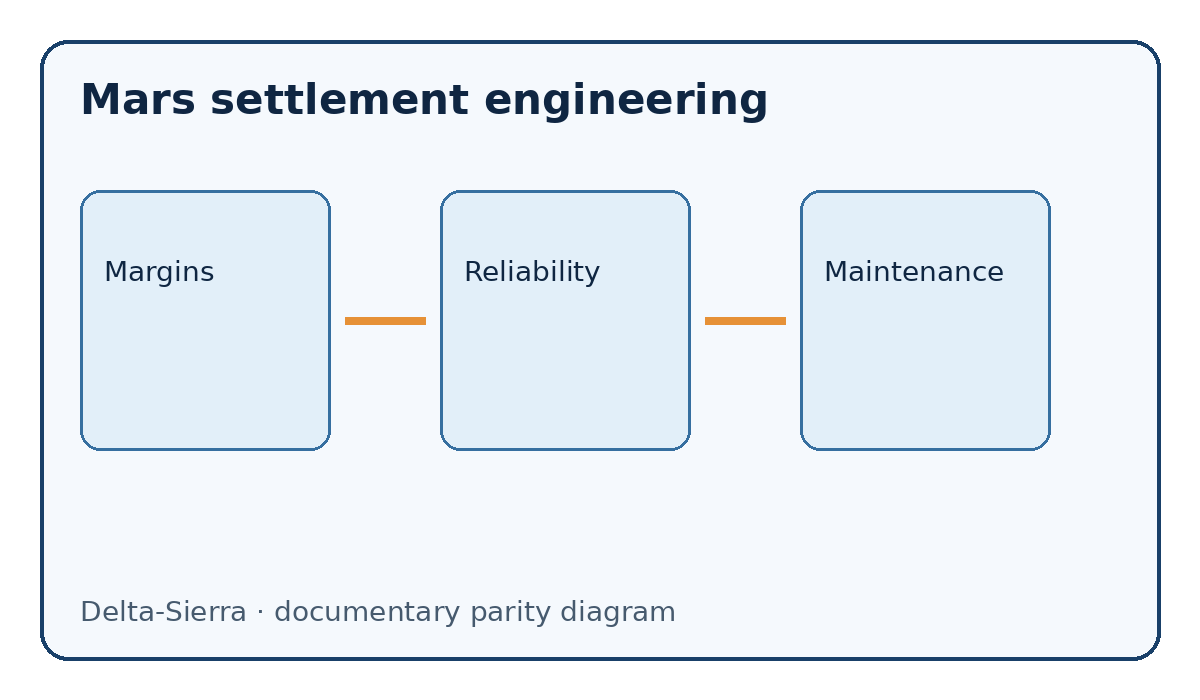

Margins: reserve that survives uncertainty

Margin is useful only when its purpose is explicit. Power margin covers uncertain loads and degradation; water margin covers leakage, processing losses and emergency demand; schedule margin absorbs maintenance and troubleshooting; mass margin protects a design against late changes. Adding the percentages blindly can create false confidence because margins can be consumed by the same event. A dust storm, for example, can reduce generation while increasing heating, filtration and maintenance demand. Engineering therefore tracks both nominal reserve and correlated stress cases. The question is not merely how much margin exists on paper, but whether enough of it remains after the failure or environmental condition that is most likely to consume several reserves at once.

Reliability: design for a sequence of imperfect events

Reliability is a property of the operating sequence, not just a component number. A redundant pump pair may be strong against one motor failure and weak against contaminated fluid, common software or loss of the shared power bus. The settlement must therefore combine redundancy with diversity, isolation, inspection and repair. Failure analysis should ask how the fault is detected, what function is lost, which reserve is consumed, who can intervene and how long recovery takes. This changes design priorities: a slightly less efficient machine with accessible bearings, local diagnostics and a manual bypass may preserve mission capability better than a high-performance unit that becomes a black box after the first unexpected fault.

Maintenance: preserve capability rather than hardware alone

This complement links “Mars settlement engineering” to “maintenance”. It makes explicit what the reader should verify, which dependencies can change the conclusion, and why this dimension must remain visible in a complete Martian architecture.

Additional primary technical sources:

Colonization is an integration problem before it is a population problem. Transport, habitats, power, water, life support, surface mobility, communications, medicine, industry, and governance can each look plausible in isolation while their interfaces remain incompatible. A credible architecture therefore follows flows across system boundaries: mass, power, heat, data, crew time, spares, and waste. The purpose of the overview is not to duplicate the specialist books but to show which interfaces must be closed before a settlement can grow without multiplying hidden dependencies.

Growth should be gated by recoverability. Adding another habitat or industrial process is beneficial only if the settlement can still isolate failures, restore vital services, and support the new equipment through its maintenance cycle. Population targets are therefore less informative than service targets: hours of emergency air, days of potable-water buffer, repair time for critical power conversion, available medical capability, and the fraction of essential parts that can be restored locally. Those measures expose whether expansion is increasing resilience or merely increasing throughput while margins shrink.

An overview also has to show sequencing. Surface power and communications may be required before crews land; landing-zone preparation can reduce risk for later heavy cargo; water prospecting can change where industry is placed; workshops become more valuable as the fleet of surface systems grows. The architecture is therefore a dependency graph through time, not a catalogue of technologies. A good plan makes the irreversible steps wait until the evidence needed for them exists.
